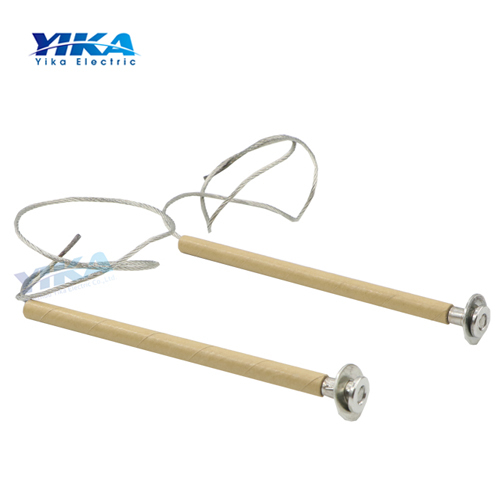

YIKA IEC High Voltage 11KV 15KV 33KV Type K Fuse Link For Drop Out Expulsion Fuse Cutout
The Fuse Link are used for 11-36KV drop out fuse cutout.
The Fuse Element adopts the accurately tested material, high purity silver, or silver-copper eutectic or nickle-chrome eutectic, based on different rated current. The fuse element wire is extruded by mold of high accuracy. The cross section is inspected by laser micrometer to ensure the accuracy, while careful assembly guarantees no crack, shrinkage or twist which affects the time-current accuracy.
High Voltage 11KV 15KV 33KV Type K Fuse Link For Drop Out Expulsion Fuse Cutout
The Fuse Element adopts the accurately tested material, high purity silver, or silver-copper eutectic or nickle-chrome eutectic, based on different rated current. The fuse element wire is extruded by mold of high accuracy. The cross section is inspected by laser micrometer to ensure the accuracy, while careful assembly guarantees no crack, shrinkage or twist which affects the time-current accuracy.
High Voltage 11KV 15KV 33KV Type K Fuse Link For Drop Out Expulsion Fuse Cutout
Specification:
| Rated current (A) |
Dimensions (mm) | Quantity/carton | ||||
| A | B | C | D | F | ||
| 1 to 40 | 12.5±0.2 | 19.0±0.3 | Note 1 | 2.0 | 6.5 | 500 |
| 50 to 100 | 12.5±0.2 | 19.0±0.3 | 5.0 | 8.0 | 500 | |
| 120 to 200 | 19.0±0.3 | not applicable |
7.0 | 12.0 | 250 | |
| Note 1: Lengths of the Expulsion Fuse Links shall be 585mm and 787mm for 11KV and 33KV respectively. | ||||||
| FUSE LINK, TYPE K, COMPLETE WITH FIXED OR REMOVABLE BUTTON HEAD, |
||||||
