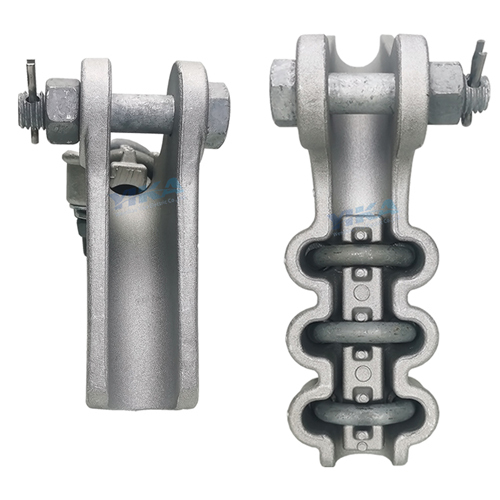

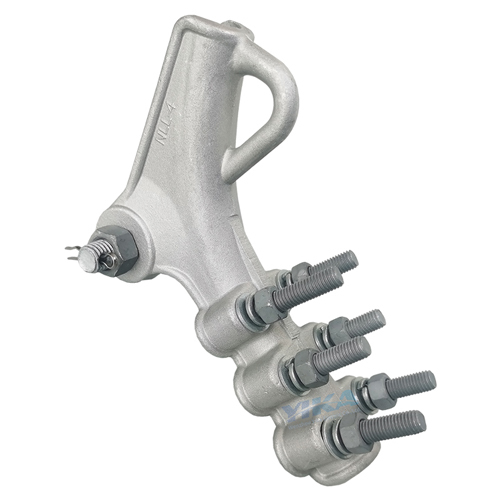

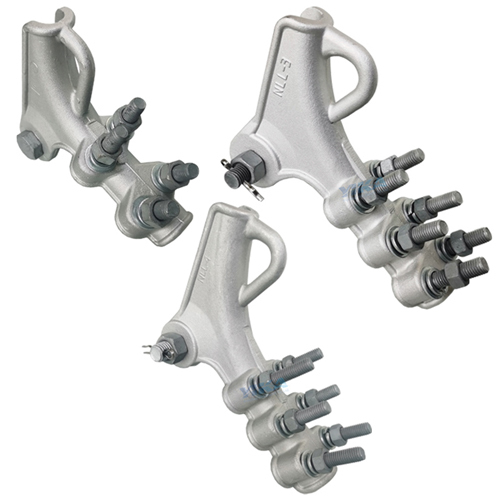

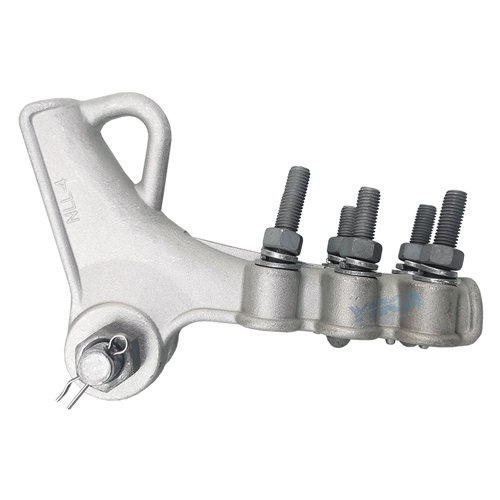

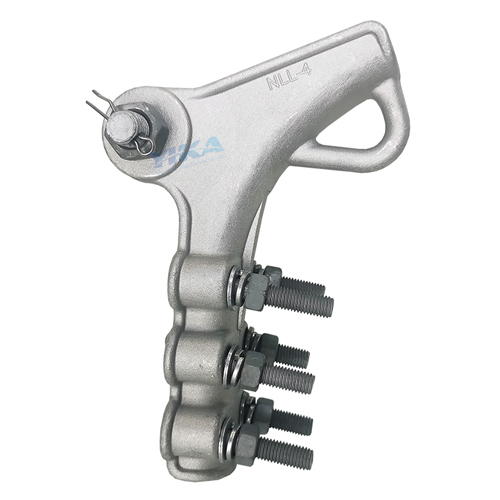

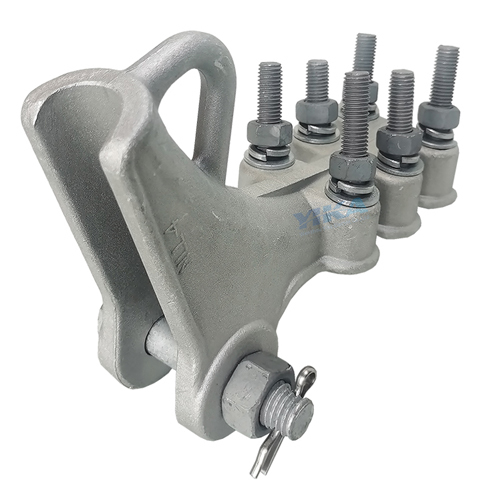

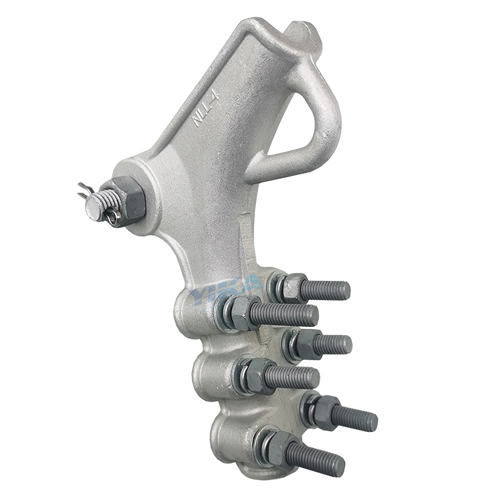

NLL-4 Aerial Cable Dead End Tension Clamp Power Accessories Aluminum Alloy U Bolt Strain Clamp
Product Description:
NLL series bolt-type aluminum alloy tension clamps are suitable for overhead lines of 10KV and below. They are used to fix aluminum stranded wires or steel-core aluminum stranded wires on the tension rods. They are used in conjunction with overhead insulated aluminum conductors and insulating covers to provide insulation protection.
Structural features:
1. The clamp body is made of high-strength aluminum alloy
2. Smooth shell and long service life
3. Easy to install and use
4. No power loss, energy-saving certified product

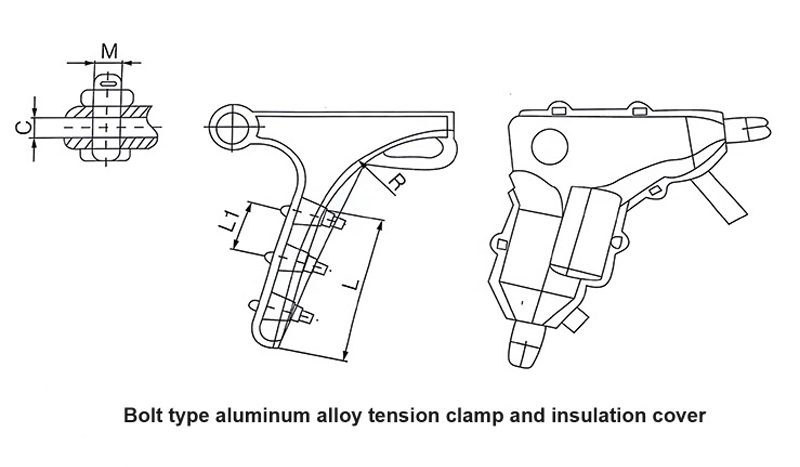

| Model | Applicable stranded wire diameter (including aluminum tape, mm) | Main dimensions (mm) | Number of U-shaped screws | Nominal failure load(KN) | Weight(Kg) | ||||
| L | L1 | R | M | C | |||||
| NLL-1 | 8.0~12.0 | 90 | 40 | 85 | 16 | 18 | 2 | 40 | 1.5 |
| NLL-2 | 11.0~16.0 | 100 | 40 | 115 | 16 | 18 | 2 | 60 | 1.8 |
| NLL-3 | 15.0~20.0 | 155 | 45 | 150 | 16 | 27 | 3 | 80 | 2.5 |
| NLL-4 | 19.0~24.0 | 170 | 50 | 175 | 16 | 30 | 3 | 90 | 3.5 |
