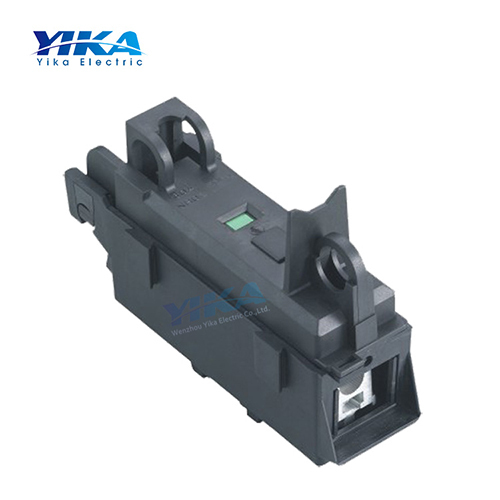

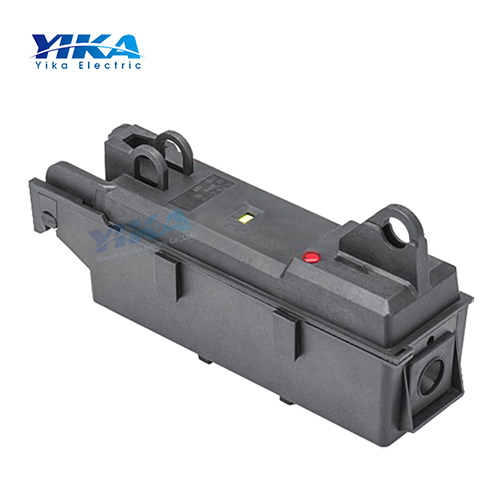

YIKA 160A 400A 630A Low Voltage Fuse Isolation Switch Types Fuse Switch Disconnector
General Description:
The APDM fuse switch is used either as an operation or protection device for Low Voltage lines.
It's manufactured in reinforced fiberglass polyamide and fulfills all the necessary requirements for outdoor installation and operation.
It can also be connected with terminals lugs and both models can be installed with single phase or three phases opening.
They have special sockets to obtain a compact set.
The switch is operated from the ground with an operating rod and also has an indicator to show if the fuse is placed.
It can be sealed with security ties.
Feature:
The switch fuse APDM has the following features included:
1,Internal connection
2,Operating light the fuse
3,Installed fuse indicator
4,Connection seal
5,Sealable safety
6,Inserts for mounting bipolar,tripolar,tetrapolar etc.
7,Eyelets suitable for proper and safe opening and closing operation,assembly and disassembly of the fuse cover
Specification:
Technical Characteristics
|

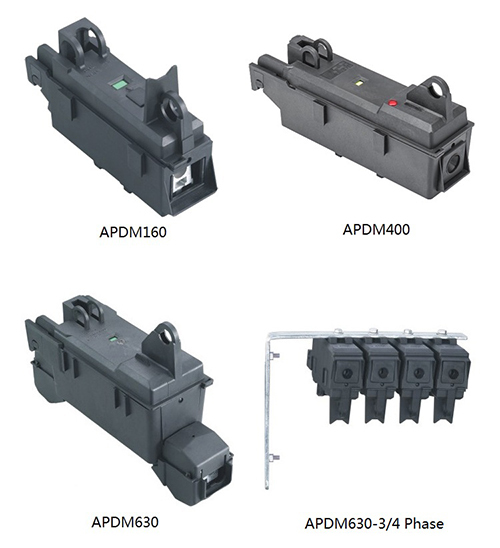

Model |
APDM160 |
APDM400 |
APDM630 |
|
To use with |
NT/NH00 |
NT/NH1,2 |
NT/NH 1,2,3 |
|
Voltage |
500V |
500V |
500V |
|
Insulation level |
1000V |
1000V |
1000V |
|
Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
|
Operational current with fuses |
160A |
400A |
630A |
|
Operational current with blades |
250A |
400A |
800A |
|
Installation category |
AC22 |
AC22 |
AC22 |
|
Short lasting current(1s) |
3.2KA |
12KA |
12KA |
|
Dynamic current(crest) |
25KA |
50KA |
50KA |
|
Interruption capacity |
100KA |
100KA |
100KA |
|
Minimum mechanical life(operation) |
1000 |
1000 |
1000 |
|
Weight |
0.6KG |
1.4KG |
1.8KG |
|
Protection range |
IP23 |
IP23 |
IP23 |
Optionals:
APDM-1,2,3,4,5,6,7
1, 1-single mounting 3-tripolar mounting 4-tetrapolar mounting
2, a-single operation b-bipolar operation c-tripolar operation d-tetrapolar operation
3, C-internal connectors
4, Y-simple-simple D-simple-double
5, R-pole voul screw maneuver L-extreme cold maneuver
6, K-arc chamber
7, X-stainless steel bolts
