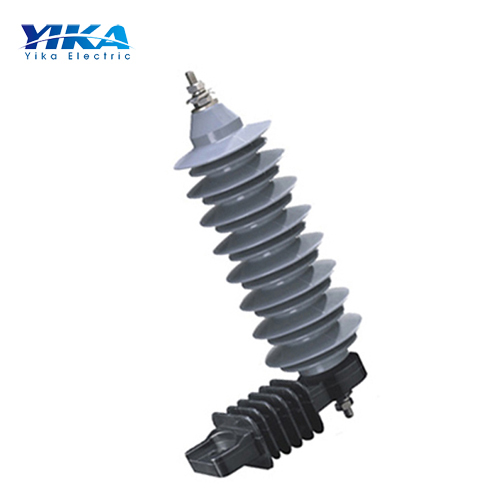

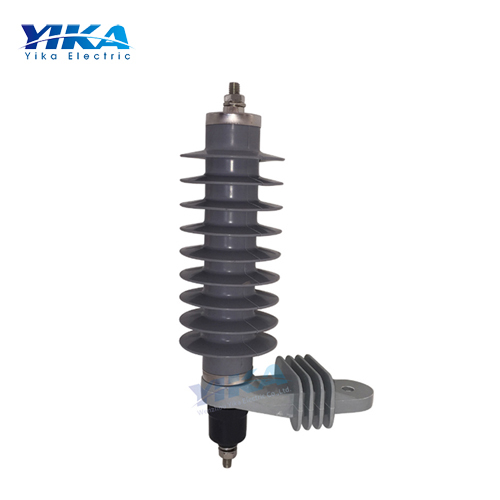

YIKA 24KV 5KA 10KA Metal Zinc Oxide Composite Lightning Arrester Silicone Rubber surge Arrester Manufacturer
Normal operating conditions for Surge Arrester :
1. The ambient air temperature is no higher than +40°C, no lower than -40 °C .
2. The altitude above sea level does not exceed 1000m. ( the plateau area should be indicated when order.)
3. AC system frequency is 50Hz or 60Hz.
4. Power frequency voltage brought to bear on arrester for a long time does not exceed the continuous operation voltage of the arrester.
5. Maximum wind speed does not exceed 35m/s.
6. Te earthquake intensity does not exceed 7 degrees.
7. The pollution area should be indicated.
|
Gapless Arrester Electrical Parameter |
|||||||
|
Type |
Rated Voltage |
MCOV |
Max.Residual Viltage |
2ms square wave impulse withstand current |
High current impulse withstand 4/10μs |
||
|
Steep current impuise1/4μS |
Switching current lmpulse30/60μs |
Nominal current lmpulse 8/20μs |
|||||
|
kV |
kV |
kV |
kV |
kV |
A |
kA |
|
| YH5W-24 | 24 | 19.5 | 82 | 54.4 | 72 | 100 | 65 |
| YH10W-24 | 24 | 19.5 | 75 | 61.6 | 72 | 250 | 100 |
