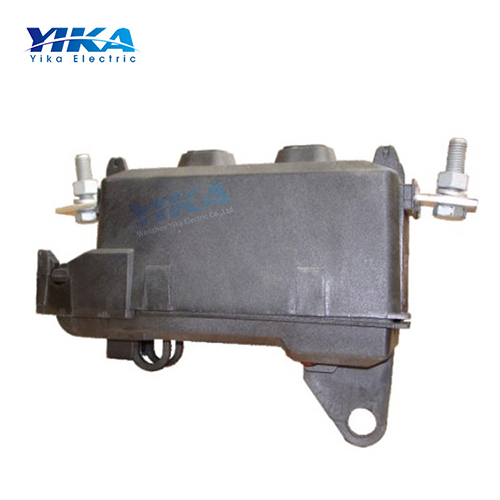

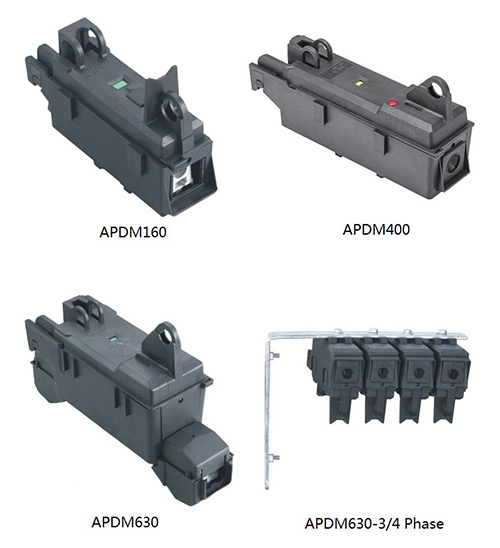

YIKA APDM 630A Pole Mounted Fuse switch Disconnector For NH 1-2 OR 3 Size Fuses
General Description:
The APDM630 fuse switch it is used either as an operation or protection device for LV line.It is designed to be used with NH 1-2 or 3 size fused offering a maximum of 630 Amps of line protection without blades.
In case blades are used ,the maximum switching load would be 800A. It is manu-factured in reinfored fiberglass polyamide and fulfills all the necessary requirements for outdoor installation and operation.
In the APED 630C model the connection is made with connectors suitable for aluminum and copper conductors with a section range between 16 and 95 mm2
(5-4/0 AWG).

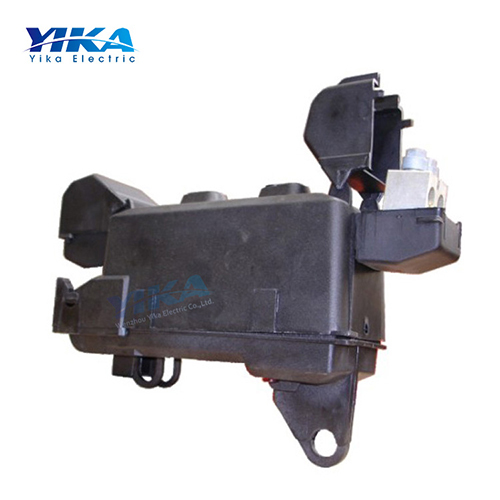

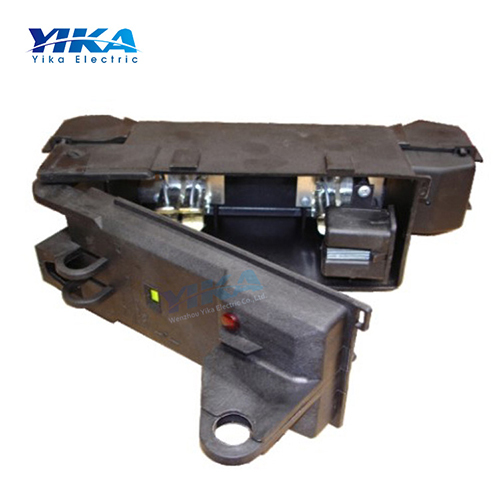

The closure of the cap allows the switch to be closed with or without a fuse,prev-enting the risk of leaving tension parts exposed.It may also be provided with a light emission diode(LED).
It can also be connected with terminals lugs and both models can be installed with single phase or three phases opening.
They have special sockets to obtain a compact set.

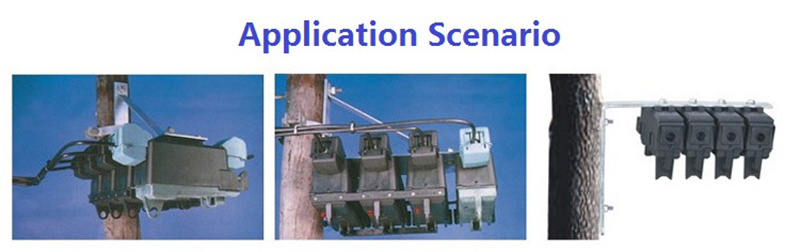

The switch is operated from the ground with an operating rod and also has an indicator to show if the fuse is placed.
It can be sealed with security ties.
Feature:
The switch fuse APDM has the following features included:
1,Internal connection
2,Operating light the fuse
3,Installed fuse indicator
4,Connection seal
5,Sealable safety

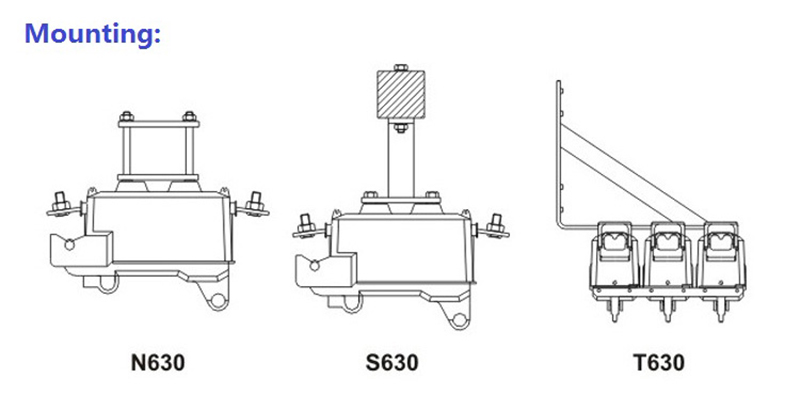

6,Inserts for mounting bipolar,tripolar,tetrapolar etc.
7,Eyelets suitable for proper and safe opening and closing operation,assembly and disassembly of the fuse cover
Specification:
Technical Characteristics
|
Model |
APDM630 |
|
To use with |
NT/NH 1,2,3 |
|
Voltage |
500V |
|
Insulation level |
1000V |
|
Frequency |
50/60Hz |
|
Operational current with fuses |
630A |
|
Operational current with blades |
800A |
|
Installation category |
AC22 |
|
Short lasting current(1s) |
12KA |
|
Dynamic current(crest) |
50KA |
|
Interruption capacity |
100KA |
|
Minimum mechanical life(operation) |
1000 |
|
Weight |
1.8KG |
|
Protection range |
IP23 |
Optionals:
APDM-1,2,3,4,5,6,7
1, 1-single mounting 3-tripolar mounting 4-tetrapolar mounting
2, a-single operation b-bipolar operation c-tripolar operation d-tetrapolar operation
3, C-internal connectors
4, Y-simple-simple D-simple-double
5, R-pole voul screw maneuver L-extreme cold maneuver
6, K-arc chamber
7, X-stainless steel bolts
