Composite Pin-type Insulator

Item No.: FP Type Series
10KV-36KV  2.5KN 4KN 5KN 8KN Composite Pin-type Insulator
  • Model Number:FP Type
  • Rated Voltage(KV):10KV/24KV/33KV/36KV
  • Tensile Strength(KN):2.5KN/4KN/5KN/8KN
  • Min Creepage Distance(mm):280mm/370mm/380mm/715mm/1050mm/1160mm
  • Material:Composite Polymer
  • More Less
    Description About Us Trade Shows Contact Us Review
    Description

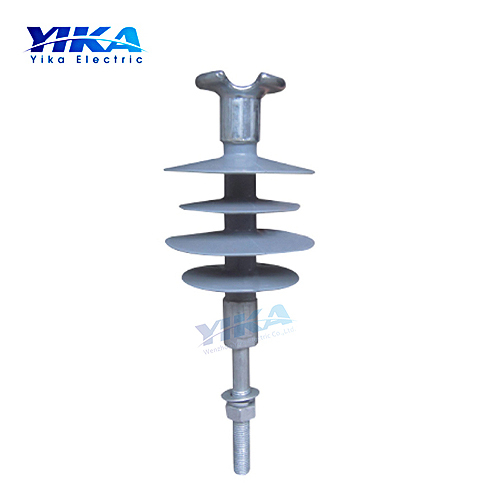

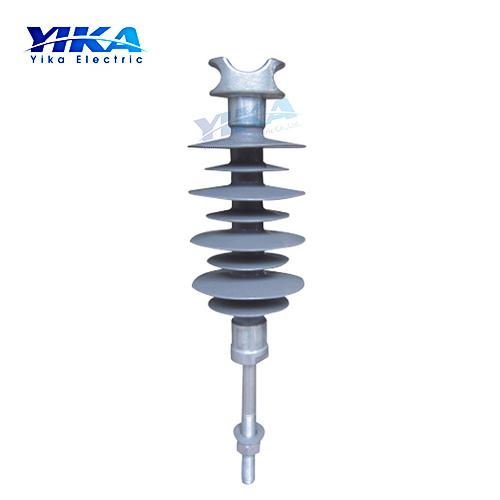

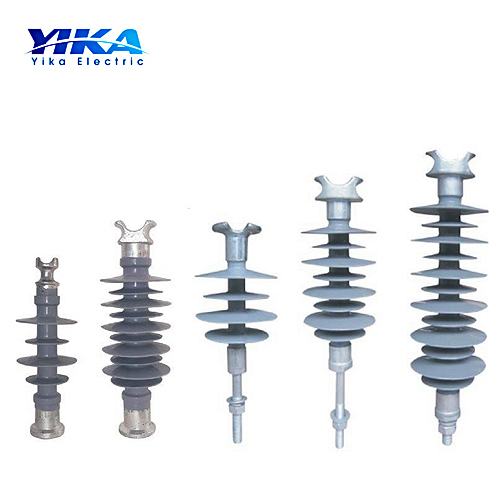

    YIKA Composite Pin Insulator 10KV 11KV 24KV 33KV 36KV Pin Post Polymer Insulator

    YIKA Composite Pin Insulator 10KV 11KV 24KV 33KV 36KV Pin Post Polymer Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.



    The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.



    Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.



    This product is reliable structure, can’t damage the core rod, and take full advantage of the mechanical strength.



     The dimension can be customized as per client's requirement.

    Key Specifications:  FP-10/4 FP-10/2.5 FP-10/5 FP-24/8 FP-33/5 FP-36/8
    Rating Voltage 10KV 10KV 10KV 24KV 33KV 36KV
    Specialized mechanical tension load: 4KN 2.5KN 5KN 8KN 5KN 8KN
    Structure height 215mm 250mm 250mm 320mm 430mm 560mm
    Min Arc Distance 125mm 180mm 165mm 215mm 320mm 460mm
    Min creepage distance 280mm 380mm 370mm 715mm 1050mm 1160mm
    Lightning impulse voltage: 75KV 75KV 105KV 150KV 230KV 230KV
    Power frequency wet withstand voltage 42KV 45KV 42KV 75KV 95KV 95KV
