28KV Composite Suspension Insulator

Item No.: FXB-28/70,FXBU-28/70-1
28KV 70KN Composite Suspension Insulator
  • Model Number:FXB-28/70,FXBU-28/70
  • Rated Voltage(KV):28KV
  • Tensile Strength(KN):70KN
  • Min Creepage Distance(mm):810mm
  • Material:Composite Polymer
  • More Less
    Description About Us Trade Shows Contact Us Review
    Description

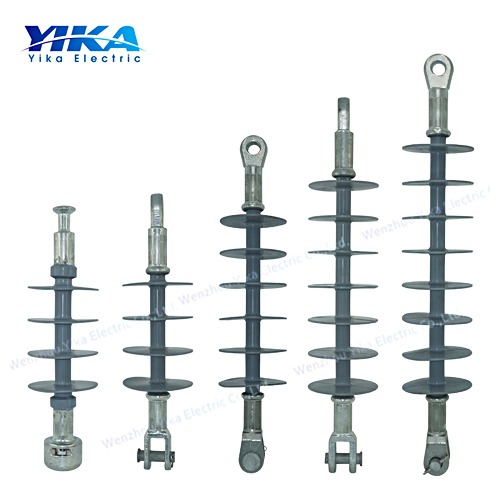

    YIKA FXB-28 28KV 70KN Medium Voltage Composite Insulators Long Rod Suspension Polymeric Insulator

    YIKA FXB-28 28KV 70KN Medium Voltage Composite Insulators Long Rod Suspension Polymeric Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.



    The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.



    Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.



    This product is reliable structure, can’t damage the core rod, and take full advantage of the mechanical strength.



     The dimension can be customized as per client's requirement.


    Technical Specifications:
    Model Rated
    Voltage
    (KV)
    Rated
    mechanical
     load(KN)
    Structure
    height
    (mm)
    Min. Arc
    distance
    (mm)
    Min. Creepage
    distance(mm)
    Lightning impulse
    withstand
    voltage(kv)
    1 min P.F. withstand
    voltage (wet)(kv)
    FXB-28/70 28 70 495 316 810 125 65
    FXBU-28/70 28 70 495 316 810 125 65
