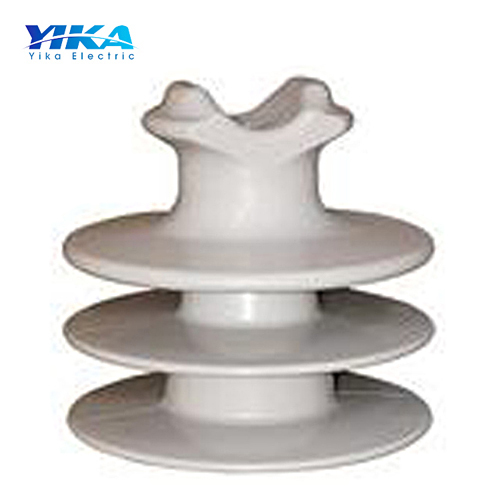

HDPE 55-6 Pin Insulator

Item No.: ANSI 55-6-1
HDPE ANSI 55-6 35KV Modified Polyethylene Pin Type Insulator
  • Model Number:ANSI 55-6
  • Rated Voltage(KV):35KV
  • Min Creepage Distance(mm):508mm
  • Material:(HDPE)Modified Polyethylene
  • Description About Us Trade Shows Contact Us Review
    Description

    YIKA HDPE 55-6 IEC Pin Post Insulator ANSI 35KV Modified Polyethylene Pin Type Insulator

       YIKA HDPE 55-6 IEC Pin Post Insulator ANSI 35KV Modified Polyethylene Pin Type Insulator is High-density polyethylene insulator(HDPE insulator) or plastic insulator can used in overhead electrical distribution system, compacted or conventional distribution aerial nets. It suits for polluted area or salty coastal area in tropical zone. HDPE insulators can be applied with jacketed or bare overhead conductors, aluminum or copper. Mainly applied in electrical system of 15KV, 25KV and 35KV.

        It is molded in one-piece with fire retardant fiber filler. Representing the largest portion of the polyethylene, HDPE polymer offer the excellent chemical resistance, good electrical properties, low moisture absorption, and high tensile strength. HDPE polymer is also non-toxic, non-staining and recyclable. It is not recommended using metallic string in compacted or conventional networks.
    Main Dimensions And Standard Particulars



    Fig 1 2 3 4
    Class ANSI 55-4 55-5 55-5 55-6
    Main Dimensions (mm) A 129.5 150 140 181
    B 140 190 190 191
    C 88 99 100 140
    D 68 68 74 85
    E 25.4 25.4 25.4 25.4
    F 16 20 20 19
    Nominal Voltage (KV) 15 25 25 35
    Greepage Distance (mm) 360 390 370 508
    Minimun Flashover Voltage Power-Frequeney Dry/kv 75 89 85 110
    Pos/kv 110 141 130 160
    Puncture Voltage (kv) 160 185 180 200
    Dry Arcing Distance (mm) 160 183 200 254
    Cantilever Failing Load (kn) 13 13 13 13
    Weight (kg) 0.6 0.85 0.91 1.1
    Qtp(pcs)/Ctn 18 9 9 9
    Qtp(pcs)/20FT 7560 3780 3780 3150
