Composite Post Insulator

Item No.: FZSW Series-1
10KV-66KV 4KN 5KN 6KN 8KN Composite Post Insulator
  • Model Number:FZSW Type
  • Rated Voltage(KV):10KV/24KV/35KV/66KV
  • Tensile Strength(KN):4KN/5KN/6KN/8KN
  • Min Creepage Distance(mm):300mm/750mm/1050mm/1930mm/1940mm
  • Material:Composite Polymer
  • More Less
    Description About Us Trade Shows Contact Us Review
    Description

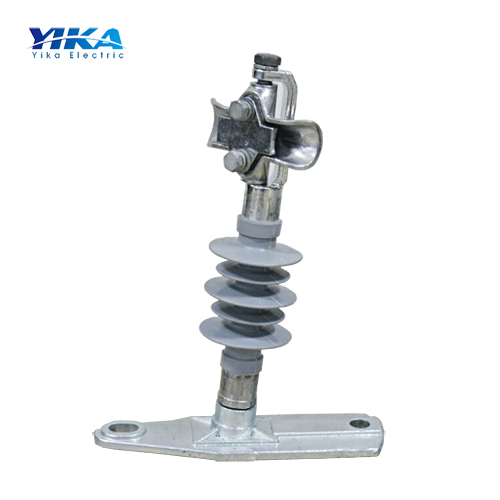

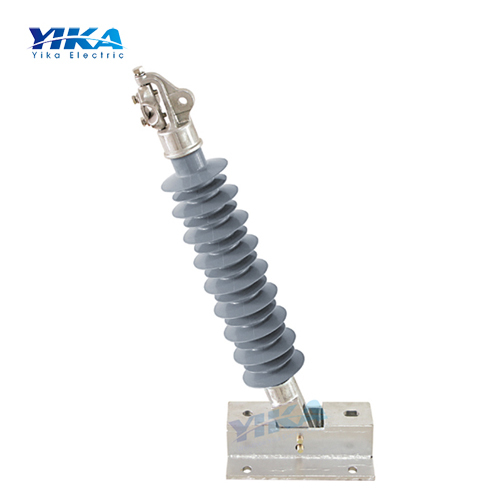

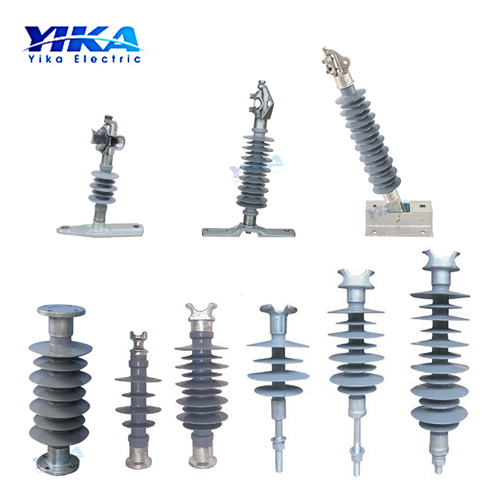

    YIKA High Voltage 10KV 35KV 66KV Composite Polymer Station Post Insulators Silicone Rubber Post Insulator Manufacturer

    YIKA High Voltage 10KV 35KV 66KV Composite Polymer Station Post Insulators Silicone Rubber Post Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.



    The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.



    Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.



    This product is reliable structure, can’t damage the core rod, and take full advantage of the mechanical strength.



     The dimension can be customized as per client's requirement.

    Technical Specifications:
    Model

    Rated
    Voltage

    (KV)

    Rated
    mechanical load(KN)

    Structure
    height

    (mm)

    Min. Arc
    distance

    (mm)

    Min. Creepage
    distance

    (mm)

    Lightning impulse
    withstand voltage(KV)

    1 min P.F. withstand
    voltage (wet)

    (KV)

    FZSW-10/4 10 4 215 125 300 75 42
    FZSW-24/8 24 8 340 250 750 150 65
    FZSW-35/5 35 5 400 320 750 185 95
    FZSW-35/6 35 6 450 350 1050 230 95
    FZSW-66/6 66 6 770 650 1930 325 140
    FZSW-66/8 66 8 760 630 1940 325 140
