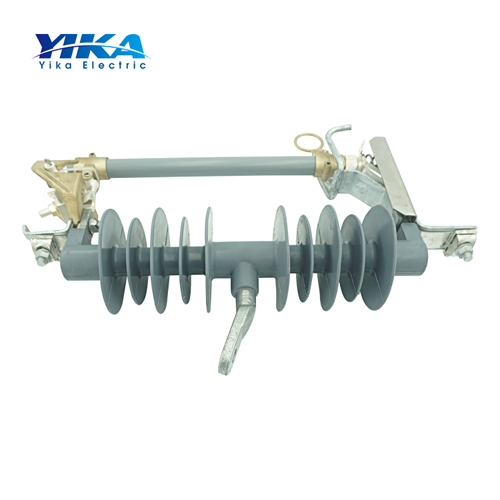

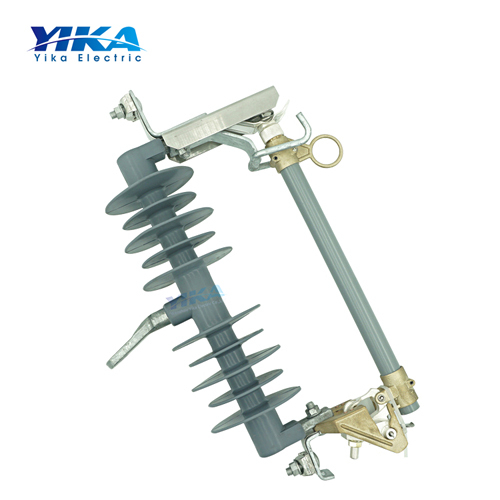

HYK1 Polymer 24-27KV Fuse Cutout

Item No.: HYK1-24-1
Polymer 24KV-27KV Fuse Cutout
  • Product Model:HYK1-24/100,HYK1-24/200
  • Rated Voltage (KV):24KV
  • Rated Current (A):100A/200A
  • Creepage Distance (mm):540mm
  • Material:Polymer
  • More Less
    Description About Us Trade Shows Contact Us Review
    Description

    YIKA HYK1-24 24 kv Polymer Dropout Fuse Cut Out 100A Expulsion 24kv - 27kv Composite Power Fuse Cutout

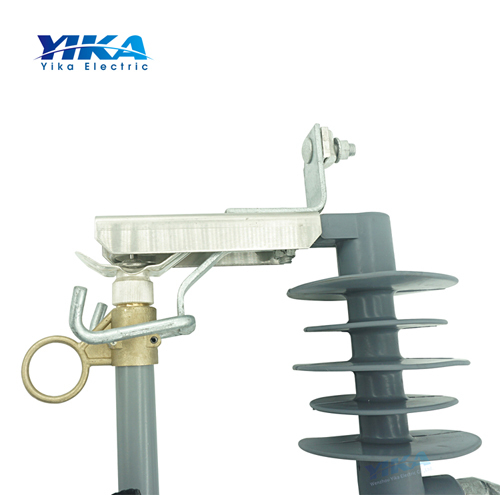

    YIKA HYK1-24 24 kv Polymer Dropout Fuse Cut Out 100A Expulsion 24kv - 27kv Composite Power Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The drop out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass.

    Specification:

    Model Rated
    Voltage
    (KV)
    Rated
    Current
    (A)
    Breaking
    current
    (A)
    BIL
    (KV)
    power frequency
    withstand voltage(KV)
    creepage
    distance
    (mm)
    weight
    (kgs)
    dimension
    (cm)
    HYK1 24-27 100 10,000 150 65 540 6.0 51*38*16
    HYK1 24-27 200 12,000 150 65 540 6.0 51*38*16
