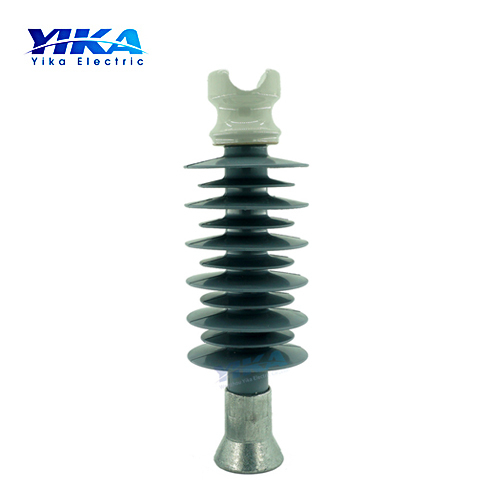

Porcelian Composite Pin-type Insulator

Item No.: FPC-28/FPC-36-1
28KV 36KV  8KN Porcelain Head Polymer Composite Pin-type Insulator
  • Model Number:FPC Type
  • Rated Voltage(KV):28KV/36KV
  • Tensile Strength(KN):8KN
  • Min Creepage Distance(mm):820mm/980mm
  • Material:Porcelain And Composite Polymer
  • More Less
    Description About Us Trade Shows Contact Us Review

     IEC 28KV 36KV Line Post Insulators Porcelain Ceramics Head Polymer Pin Insulator

     IEC 28KV 36KV Line Post Insulators Porcelain Ceramics Head Polymer Pin Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.


    The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.


    Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.


    This product is reliable structure, can’t damage the core rod, and take full advantage of the mechanical strength.


     The dimension can be customized as per client's requirement.

    Key Specifications  FPC-28 FPC-36
    Rating Voltage: 28KV 36KV
    Specialized mechanical tension load: 8KN 8KN
    Structure height: 375mm 418mm
    Min Arc Distance: 220mm 260mm
    Min creepage distance: 820mm 980mm
    Lightning impulse voltage: 200KV 220KV
    Power frequency wet withstand voltage: 92KV 112KV
