YK4 15-27KV Fuse Cutout

Item No.: YK4-15-1
15KV-27KV ceramic fuse cutout
  • Product Model:YK4-15/100,YK4-15/200
  • Rated Voltage (KV):15KV
  • Rated Current (A):100A/200A
  • Creepage Distance (mm):320mm
  • Material:Porcelain
  • More Less
    Description About Us Trade Shows Contact Us Review
    Description

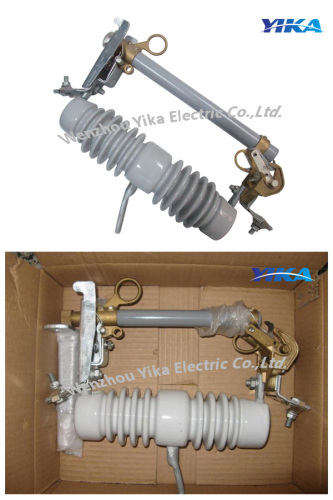

    YIKA YK4-15 Dropout Fuses 200A Cut Out 200 Amp Ceramic Expulsion Drop-Out Type Porcelain 15Kv Fuse Cutout

    YIKA YK4-15 Dropout Fuses 200A Cut Out 200 Amp Ceramic Expulsion Drop-Out Type Porcelain 15Kv Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The drop out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass.

    Specification:

    Model Rated
    Voltage
    (KV)
    Rated
    Current
    (A)
    Breaking
    current
    (A)
    BIL
    (KV)
    power frequency
    withstand voltage(KV)
    creepage
    distance
    (mm)
    weight
    (kgs)
    dimension
    (cm)
    YK4 15-27 100 10,000 125 45 320 8.5 51*36*13
    YK4 15-27 200 12,000 125 45 320 8.5 51*36*13
