YK2 15KV Fuse Cutout

Item No.: YK2-15-1
15KV-27KV ceramic fuse cutout
Description About Us Trade Shows Contact Us Review
Description

YK2-15 15 Kv 15Kv Electrical Drop Fuses High Voltage Dropout Out Ceramic Power Porcelain Fuse Cutout

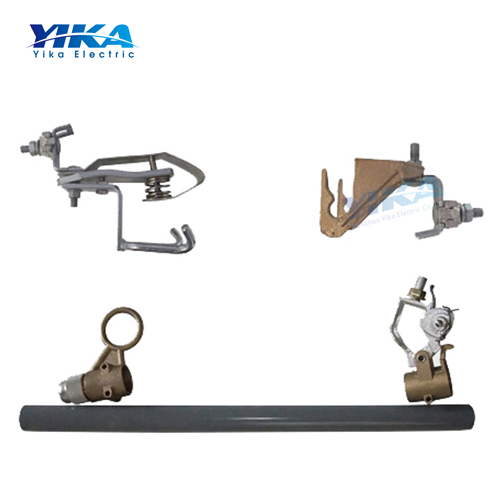

YK2-15 15 Kv 15Kv Electrical Drop Fuses High Voltage Dropout Out Ceramic Power Porcelain Fuse Cutout are connected with the incoming feeder of the distribution transformer or distribution lines. These are primary used to protect transformers or lines from short circuits and overloads and switching currents. The drop out fuse unit is composed of insulator supports and a fuse tube, static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube. The interior of the fuse tube is the extinguishing tube, the exterior is made of phenolic compound paper tube or epoxy glass.

Specification:

Model Rated
Voltage
(KV)
Rated
Current
(A)
Breaking
current
(A)
BIL
(KV)
power frequency
withstand voltage(KV)
creepage
distance
(mm)
weight
(kgs)
dimension
(cm)
YK2 15-27 100 10,000 125 45 320 7.5 51*36*13
YK2 15-27 200 12,000 125 45 320 7.5 51*36*13
